Journal Articles

2024

1.

   Loop-extruding Smc5/6 organizes transcription-induced positive DNA supercoils

   Kristian Jeppsson, Biswajit Pradhan, Takashi Sutani, and 8 more authors

   Molecular Cell, 2024

   Abs HTML



   The structural maintenance of chromosomes (SMC) protein complexes—cohesin, condensin, and the Smc5/6 complex (Smc5/6)—are essential for chromosome function. At the molecular level, these complexes fold DNA by loop extrusion. Accordingly, cohesin creates chromosome loops in interphase, and condensin compacts mitotic chromosomes. However, the role of Smc5/6’s recently discovered DNA loop extrusion activity is unknown. Here, we uncover that Smc5/6 associates with transcription-induced positively supercoiled DNA at cohesin-dependent loop boundaries on budding yeast (Saccharomyces cerevisiae) chromosomes. Mechanistically, single-molecule imaging reveals that dimers of Smc5/6 specifically recognize the tip of positively supercoiled DNA plectonemes and efficiently initiate loop extrusion to gather the supercoiled DNA into a large plectonemic loop. Finally, Hi-C analysis shows that Smc5/6 links chromosomal regions containing transcription-induced positive supercoiling in cis. Altogether, our findings indicate that Smc5/6 controls the three-dimensional organization of chromosomes by recognizing and initiating loop extrusion on positively supercoiled DNA.

2023

1.

   The Smc5/6 complex is a DNA loop-extruding motor

   Biswajit Pradhan, Takaharu Kanno, Miki Umeda Igarashi, and 6 more authors

   Nature, 2023

   Abs HTML



   Structural maintenance of chromosomes (SMC) protein complexes are essential for the spatial organization of chromosomes. Whereas cohesin and condensin organize chromosomes by extrusion of DNA loops, the molecular functions of the third eukaryotic SMC complex, Smc5/6, remain largely unknown. Using single-molecule imaging, we show that Smc5/6 forms DNA loops by extrusion. Upon ATP hydrolysis, Smc5/6 reels DNA symmetrically into loops at a force-dependent rate of one kilobase pair per second. Smc5/6 extrudes loops in the form of dimers, whereas monomeric Smc5/6 unidirectionally translocates along DNA. We also find that the subunits Nse5 and Nse6 (Nse5/6) act as negative regulators of loop extrusion. Nse5/6 inhibits loop-extrusion initiation by hindering Smc5/6 dimerization but has no influence on ongoing loop extrusion. Our findings reveal functions of Smc5/6 at the molecular level and establish DNA loop extrusion as a conserved mechanism among eukaryotic SMC complexes.

2022

1.

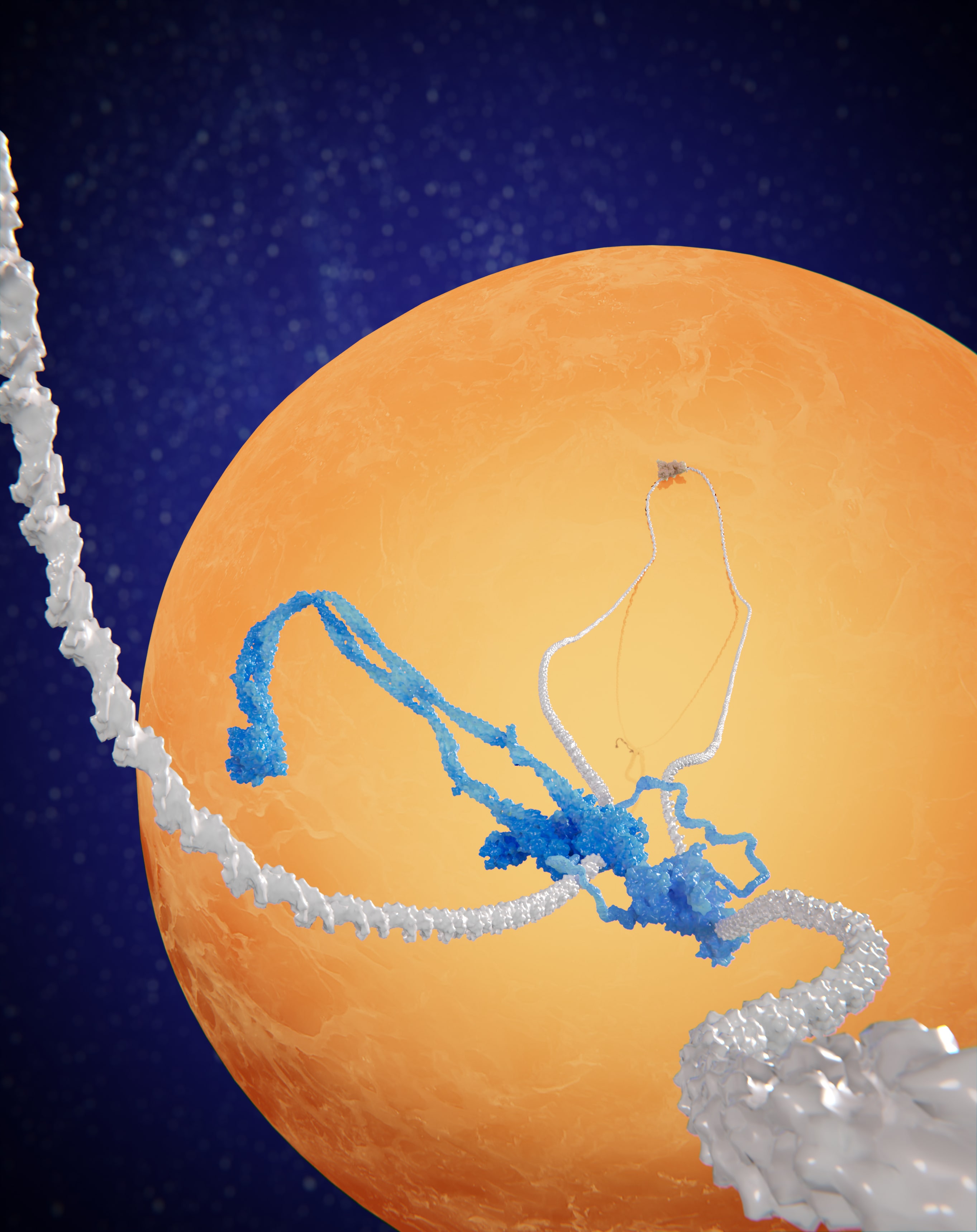

   SMC complexes can traverse physical roadblocks bigger than their ring size

   Biswajit Pradhan, Roman Barth, Eugene Kim, and 8 more authors

   Cell reports, 2022

   Abs HTML



   Ring-shaped structural maintenance of chromosomes (SMC) complexes like condensin and cohesin extrude loops of DNA. It remains, however, unclear how they can extrude DNA loops in chromatin that is bound with proteins. Here, we use in vitro single-molecule visualization to show that nucleosomes, RNA polymerase, and dCas9 pose virtually no barrier to loop extrusion by yeast condensin. We find that even DNA-bound nanoparticles as large as 200 nm, much bigger than the SMC ring size, also translocate into DNA loops during extrusion by condensin and cohesin. This even occurs for a single-chain version of cohesin in which the ring-forming subunits are covalently linked and cannot open to entrap DNA. The data show that SMC-driven loop extrusion has surprisingly little difficulty in accommodating large roadblocks into the loop. The findings also show that the extruded DNA does not pass through the SMC ring (pseudo)topologically, hence pointing to a nontopological mechanism for DNA loop extrusion.

2.

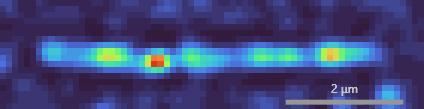

   Condensin-driven loop extrusion on supercoiled DNA

   Eugene Kim, Alejandro Martin Gonzalez, Biswajit Pradhan, and 2 more authors

   Nature structural & molecular biology, 2022

   Abs HTML



   Condensin, a structural maintenance of chromosomes (SMC) complex, has been shown to be a molecular motor protein that organizes chromosomes by extruding loops of DNA. In cells, such loop extrusion is challenged by many potential conflicts, for example, the torsional stresses that are generated by other DNA-processing enzymes. It has so far remained unclear how DNA supercoiling affects loop extrusion. Here, we use time-lapse single-molecule imaging to study condensin-driven DNA loop extrusion on supercoiled DNA. We find that condensin binding and DNA looping are stimulated by positively supercoiled DNA, and condensin preferentially binds near the tips of supercoiled plectonemes. Upon loop extrusion, condensin collects nearby plectonemes into a single supercoiled loop that is highly stable. Atomic force microscopy imaging shows that condensin generates supercoils in the presence of ATP. Our findings provide insight into the topology-regulated loading and formation of supercoiled loops by SMC complexes and clarify the interplay of loop extrusion and supercoiling.

2020

1.

   Single electron transfer events and dynamical heterogeneity in the small protein azurin from Pseudomonas aeruginosa

   Biswajit Pradhan, Christopher Engelhard, Sebastiaan Van Mulken, and 3 more authors

   Chemical Science, 2020

   Abs HTML



   Monitoring the fluorescence of single-dye-labeled azurin molecules, we observed the reaction of azurin with hexacyanoferrate under controlled redox potential yielding data on the timing of individual (forward and backward) electron transfer (ET) events. Change-point analysis of the time traces demonstrates significant fluctuations of ET rates and of mid-point potential E0. These fluctuations are a signature of dynamical heterogeneity, here observed on a 14 kDa protein, the smallest to date. By correlating changes in forward and backward reaction rates we found that 6% of the observed change events could be explained by a change in midpoint potential, while for 25% a change of the donor–acceptor coupling could explain the data. The remaining 69% are driven by variations in complex association constants or structural changes that cause forward and back ET rates to vary independently. Thus, the observed spread in individual ET rates could be related in a unique way to variations in molecular parameters. The relevance for the understanding of metabolic processes is briefly discussed.

Preprints

2024

1.

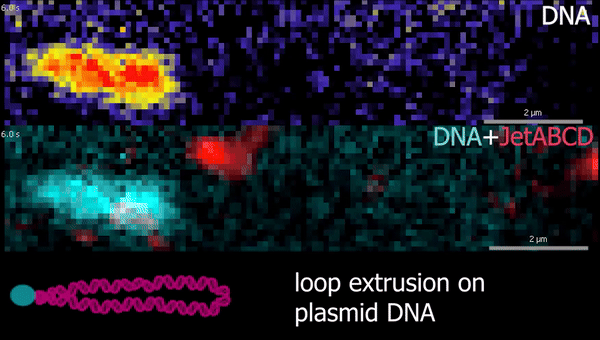

   Loop extrusion-mediated plasmid DNA cleavage by the bacterial SMC Wadjet complex

   Biswajit Pradhan, Amar Deep, Jessica König, and 3 more authors

   2024

   Abs HTML



   Structural maintenance of chromosomes (SMC) protein complexes play pivotal roles in genome organization and maintenance across all domains of life. In prokaryotes, SMC family Wadjet complexes structurally resemble the widespread Muk-BEF genome-organizing complexes but serve a defensive role by inhibiting plasmid transformation. We previously showed that Wadjet specifically cleaves circular DNA; however, the molecular mechanism underlying DNA substrate recognition remains unclear. Here, we use in vitro single-molecule imaging to directly visualize DNA loop extrusion and plasmid cleavage by Wadjet. We find that Wadjet is a symmetric DNA loop extruder that simultaneously reels in DNA from both sides of a growing loop and that this activity requires a dimeric JetABC supercomplex containing two dimers of the JetC motor subunit. On surface-anchored plasmid DNAs, Wadjet extrudes the full length of a 44 kilobase pair plasmid, stalls, and then cleaves DNA. Our findings reveal the role of loop extrusion in the specific recognition and elimination of plasmids by Wadjet, and establish loop extrusion as an evolutionarily conserved mechanism among SMC complexes across kingdoms of life.

2.

   Symmetry of loop extrusion by dimeric SMC complexes is DNA-tension-dependent

   Biswajit Pradhan, Adrian Pinto, Takaharu Kanno, and 8 more authors

   2024

   Abs HTML

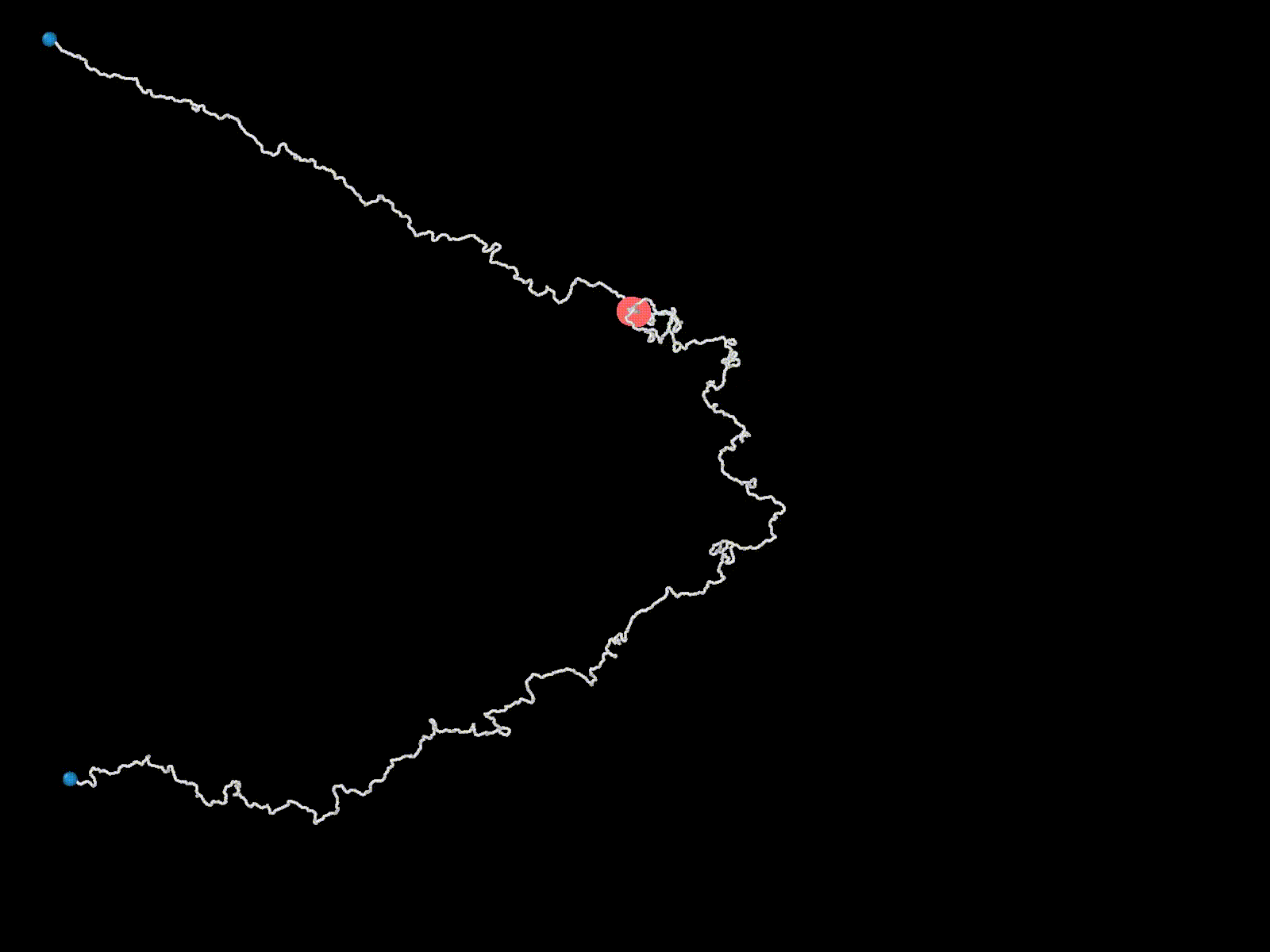

   Structural maintenance of chromosome (SMC) complexes organize and regulate genomes via DNA loop extrusion. During this process, the complexes increase the loop size by reeling in DNA from one or both sides of the loop. The factors governing this symmetry remain unclear. Here, we combine single-molecule analysis and molecular dynamic simulations to investigate the symmetry of loop extrusion of various SMC complexes. We find that whereas monomeric condensin and cohesin are one-sided extruders, the symmetry of dimeric SMCs, such as Smc5/6 and Wadjet, is DNA tension dependent. At low DNA tension (< 0.1pN), Smc5/6 and Wadjet extrude DNA from both sides of the loop. At higher tension, however, they transition to a behavior akin to one-sided extruders, yet still capable of extruding from one or the other side thereby switching the direction of extrusion. Our simulations further reveal that thermal fluctuations significantly influence loop extrusion symmetry, causing variations in DNA reeling rates between the two motors in the dimeric complexes and their direction switching at stalling tensions. Our findings challenge the previous view of loop extrusion symmetry as a fixed characteristic, revealing its dynamic nature and regulation by both intrinsic protein properties and extrinsic factors.
